Technical Content: Pipe Bending for Pressure Vessels

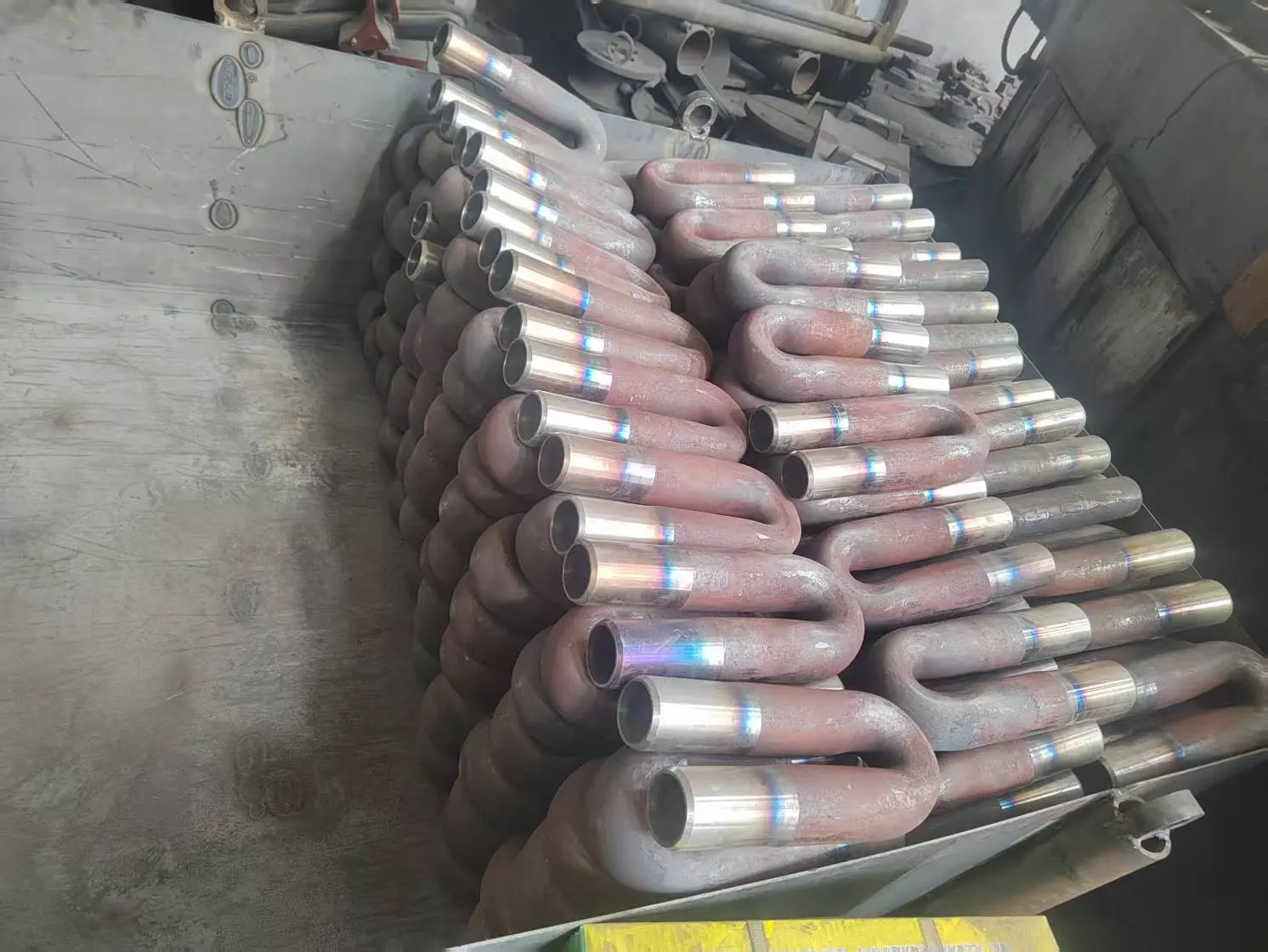

The internal structure of pressure vessels is often complex, making installation work time-consuming and labor-intensive. To improve the efficiency of piping installation inside pressure vessels and to enhance safety by reducing the number of weld seams, design engineers usually adopt J-shaped, U-shaped, and S-shaped tubes. For pipe manufacturing companies, producing these tube forms presents both opportunities and challenges. The advantage lies in the ability to take straight Metal Pipes, process them immediately according to customer drawings, and deliver them to meet specific project requirements. The challenge, however, is that most metal pipe manufacturers lack supporting tube-bending equipment, skilled workers, and advanced production know-how.

Based on these customer demands, EZ STEEL has established a dedicated pipe bending workshop, invested in and self-developed U-bending equipment, and trained a team of skilled technicians who can read drawings, understand processes, and manufacture high-quality components. Over the years, we have delivered batches of U-tubes and J-tubes on time and to specification, earning recognition and trust from many pressure vessel manufacturers.

Quality Control: High Precision U-Bend Tubes

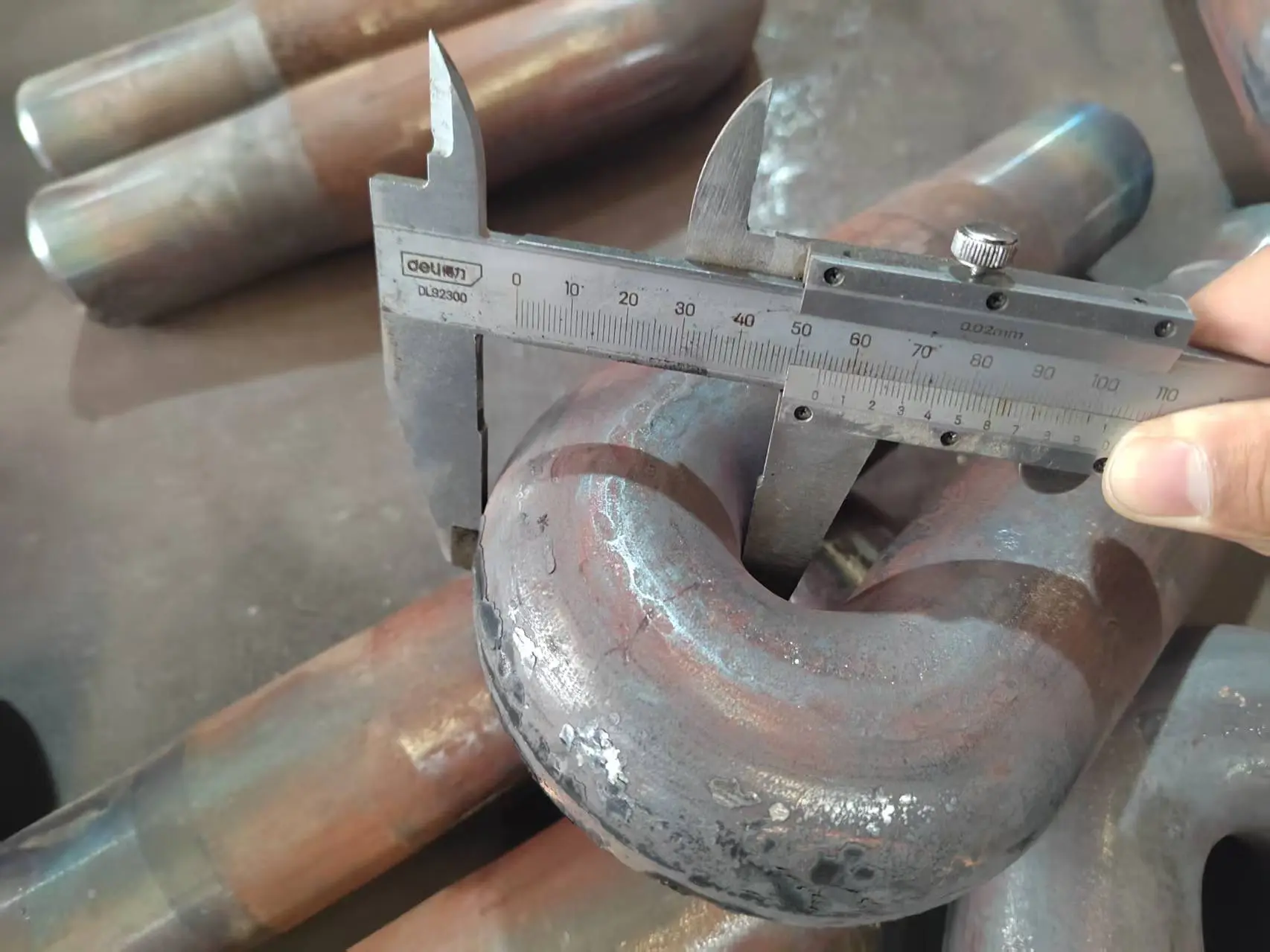

For bending radius requirements such as R < 1.5D or even R < 1D, our team first develops a solution, conducts trials, and makes continuous improvements to tooling and process guidelines until the customer’s design parameters are fully met before entering mass production.

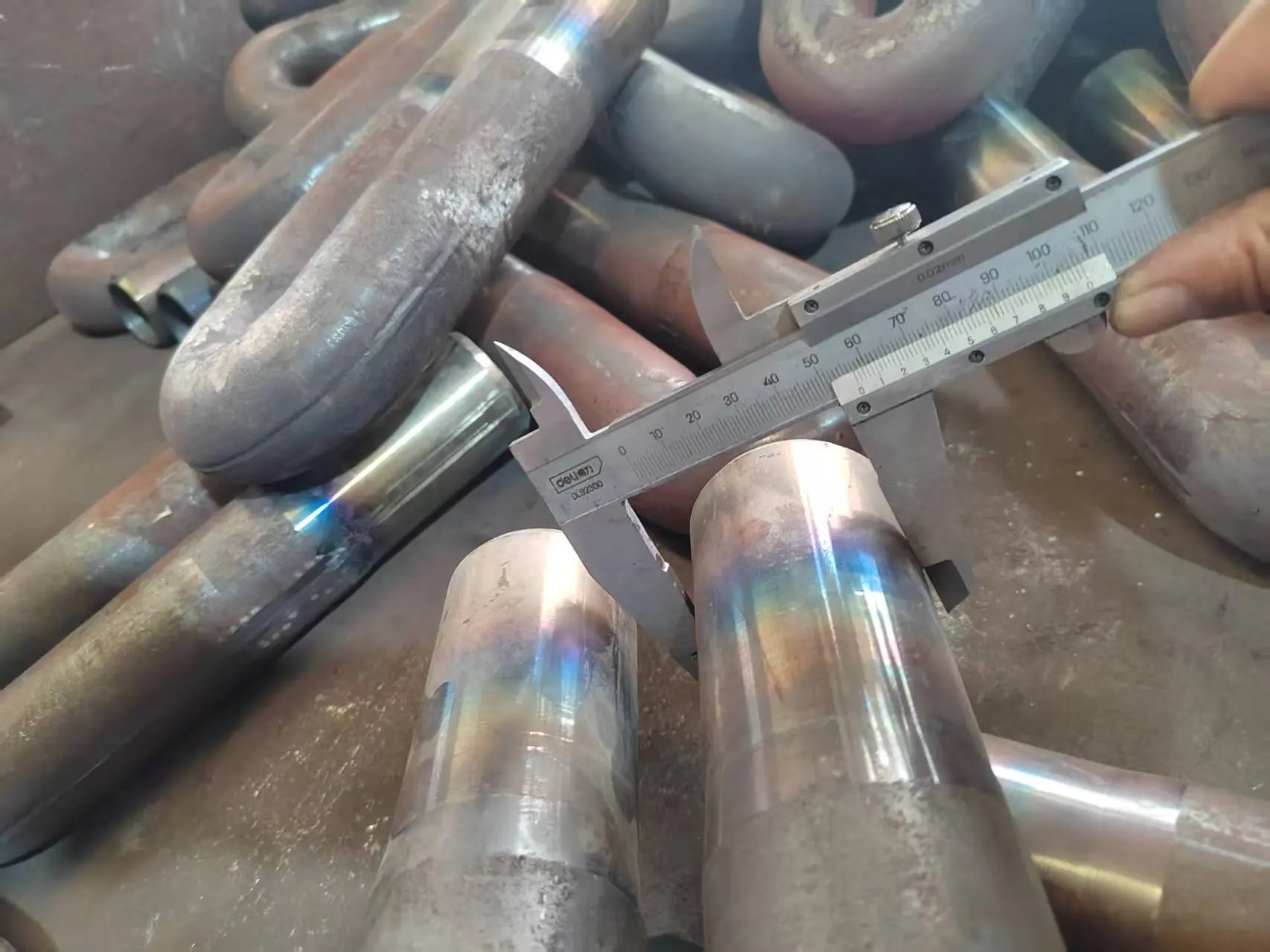

According to both international and domestic standards, the ovality tolerance for U-bends is generally set at 12.5%. However, in actual delivery, we consistently control ovality within approximately 5%, and never exceeding 10%. In our strict inspection process, any U-bend with ovality above 10% is treated as a non-conforming product.

Business Achievements: Global Pipe Bending Services

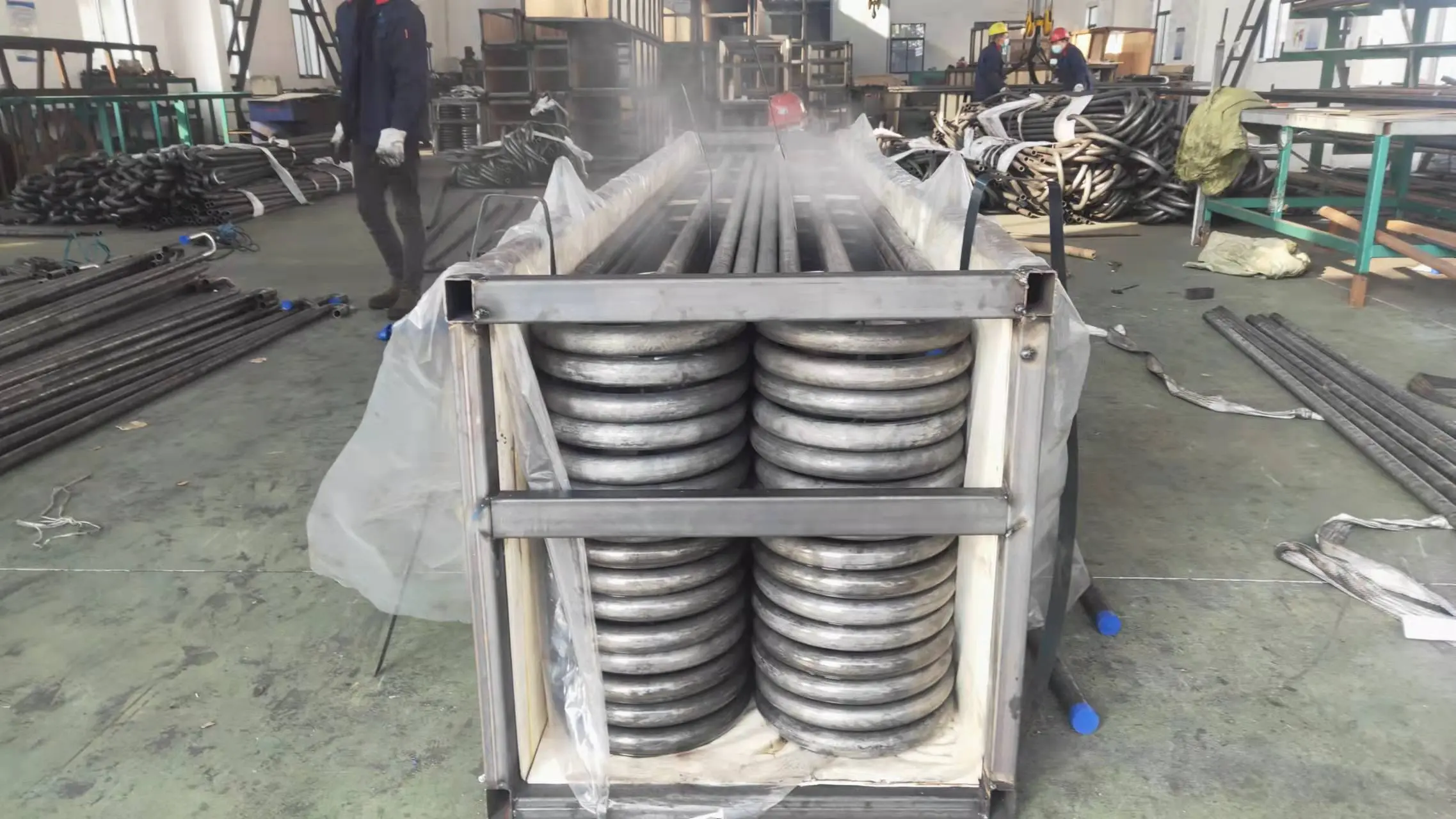

To date, we have successfully supplied multiple batches of deep-processed U-bends to boiler and pressure vessel manufacturers from Malaysia, Thailand, South Africa, Poland, and Germany. Our products have been highly recognized by customers for significantly improving their production efficiency while reducing manufacturing costs.

Contact Us for U Bend Tube Processing

We welcome project managers who require pressure vessel tubes and U-bend deep processing to get in touch with us. EZ STEEL offers comprehensive technical support covering material selection, pressure pipe design, manufacturing, and deep processing.
